TRI-5 CUSTOM CHASSIS

$14,995.00

Short Description Goes Here

Select Yes if you would like to add DSE Rack and Pinion Steering.
Select Yes if you would like to add QA1 Tie Rod Ends
Select Yes if you would like brake lines.
Select Yes if you would like to add Fuel Lines
Select Yes if you would like to add Rear Sway Bar.
Select Yes if you would like to add Powder Coating.
Select Yes if you would like to add Wilwood Hubs.
Select Yes if you would like to add Shockwave Upgrade.
Select the option type if you would like to add Motor Mounts.
Select the correct size if you would like to add Brake Options.
Starting at $1500, select all that apply from the list of attributes below.
Product total
Options total
Grand total
Category:

Description

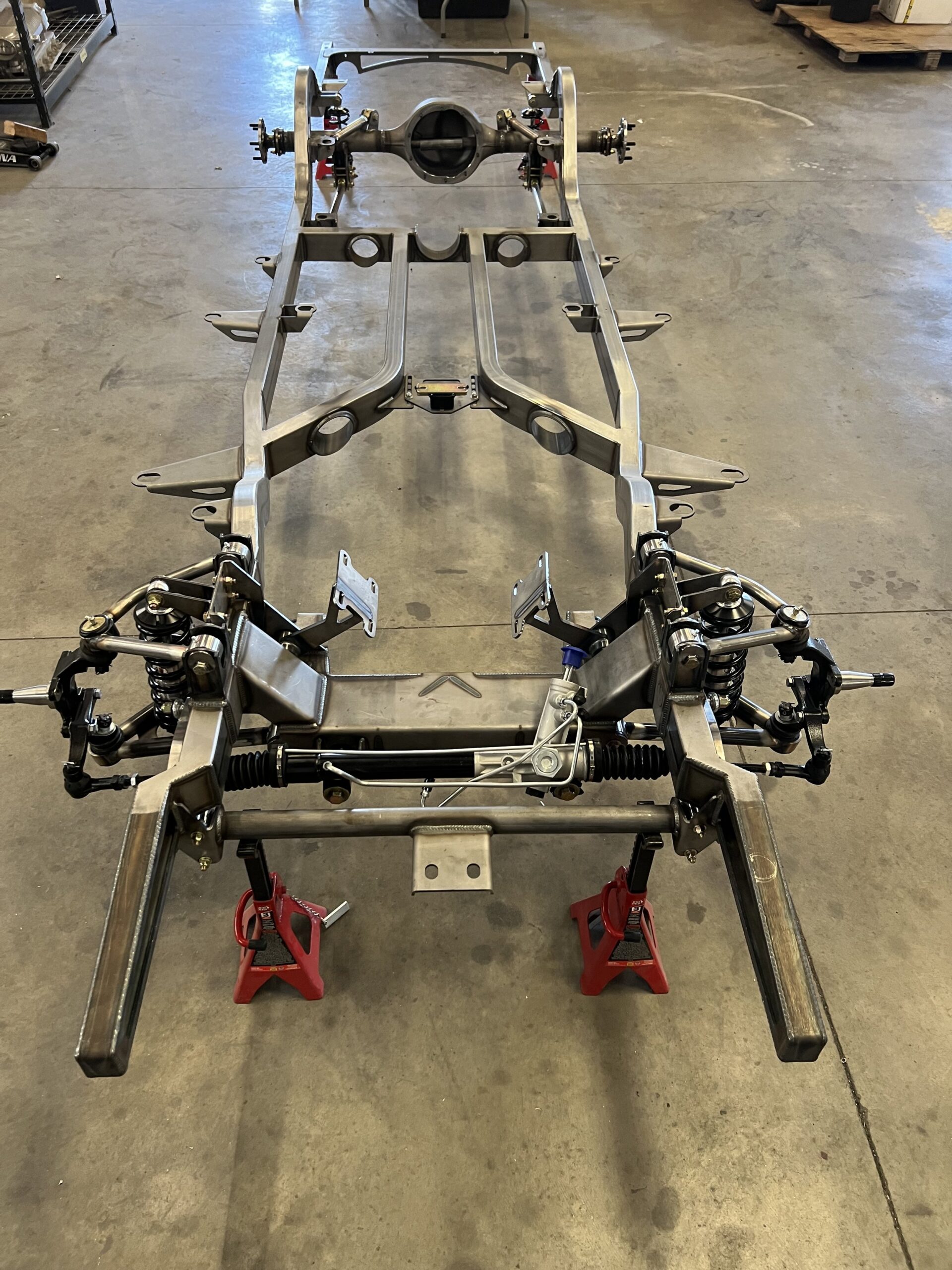

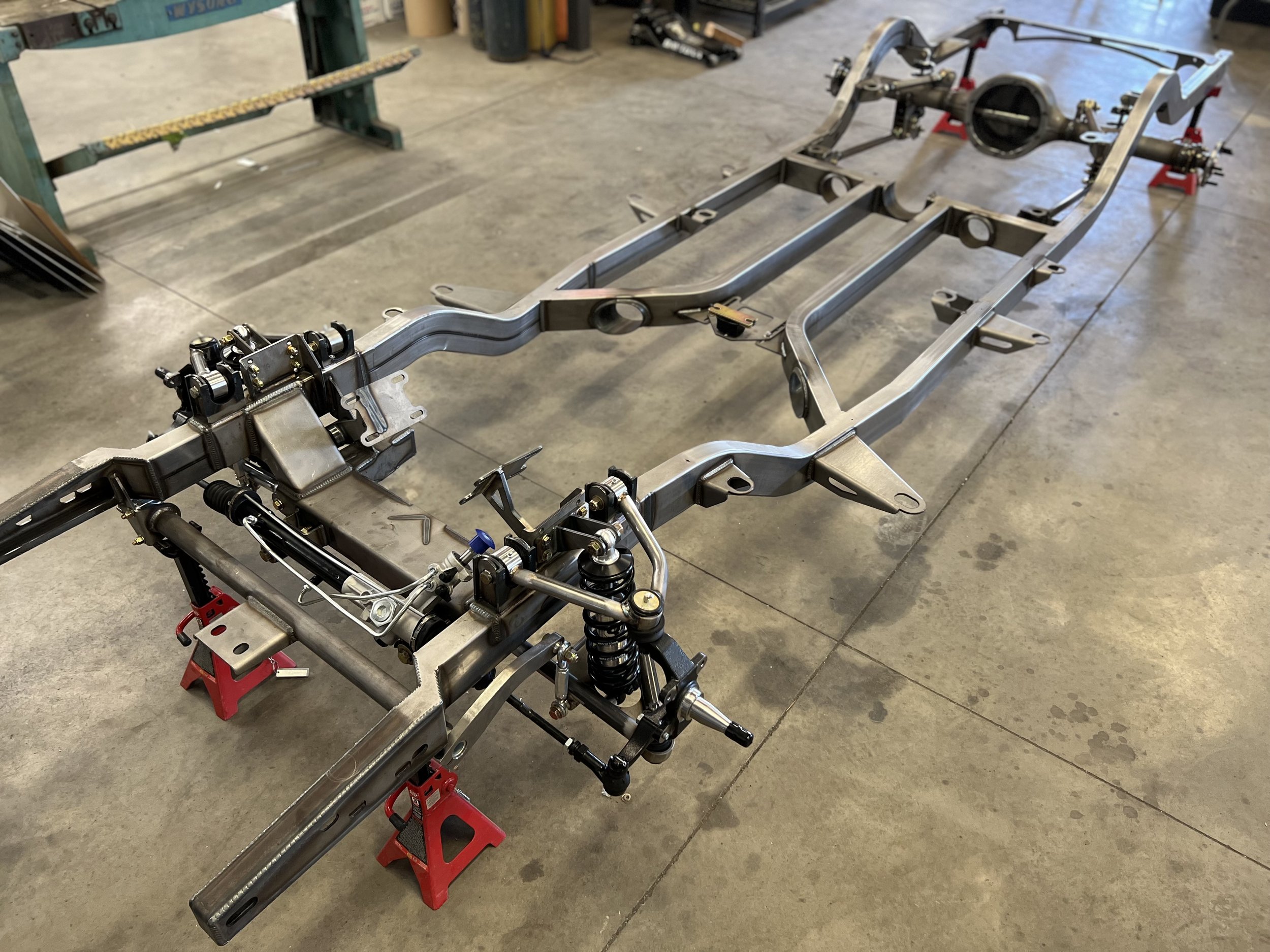

Tri-5 Custom Chassis

Standard Chassis Features

  • 2×4 0.120 wall mandrel bent rectangle tube construction
  • Splined Front Sway Bar
  • Center frame construction w/adjustable transmission crossmember to accommodate a wide variety of most GM transmission and 4” exhaust ports

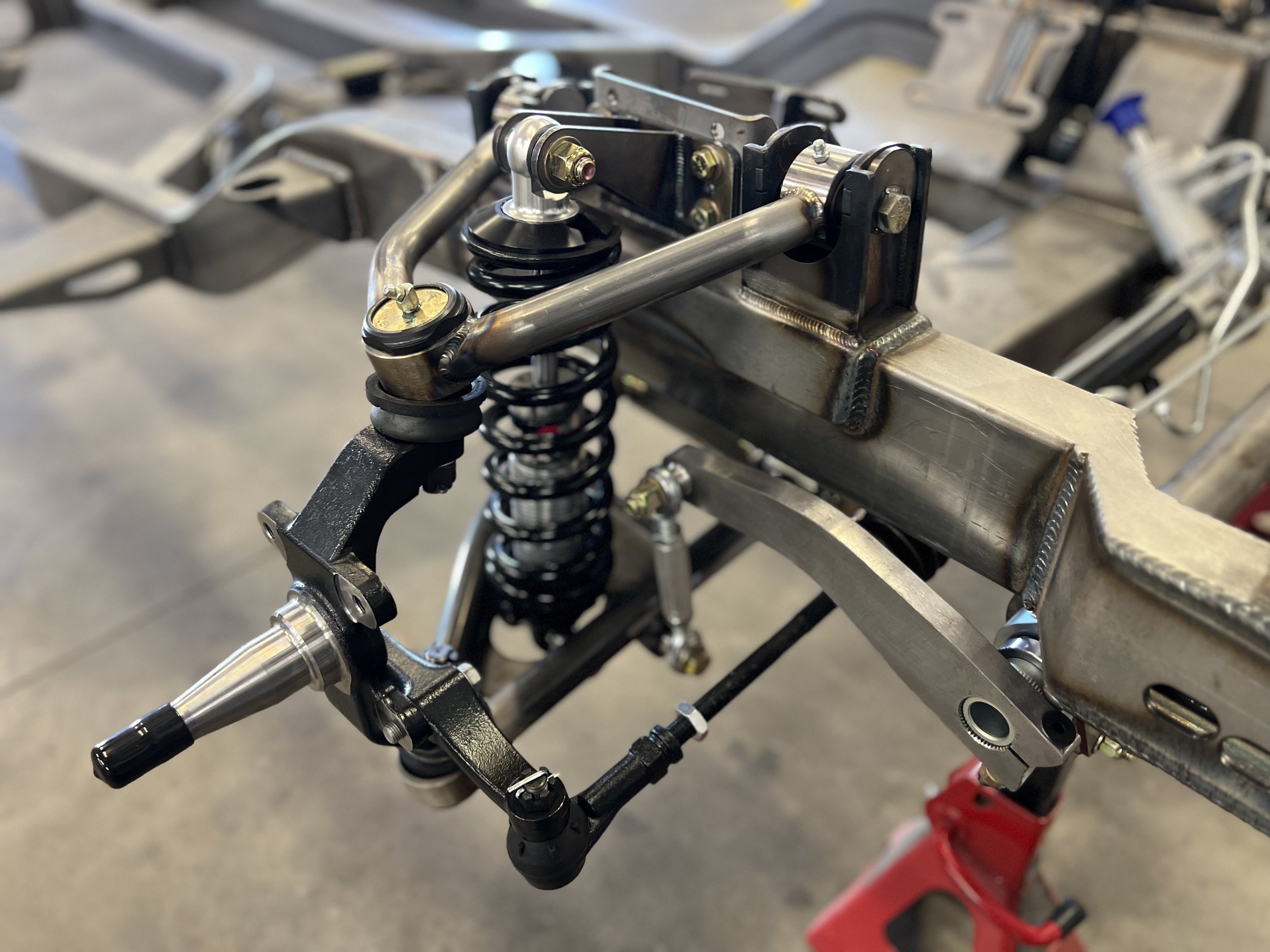

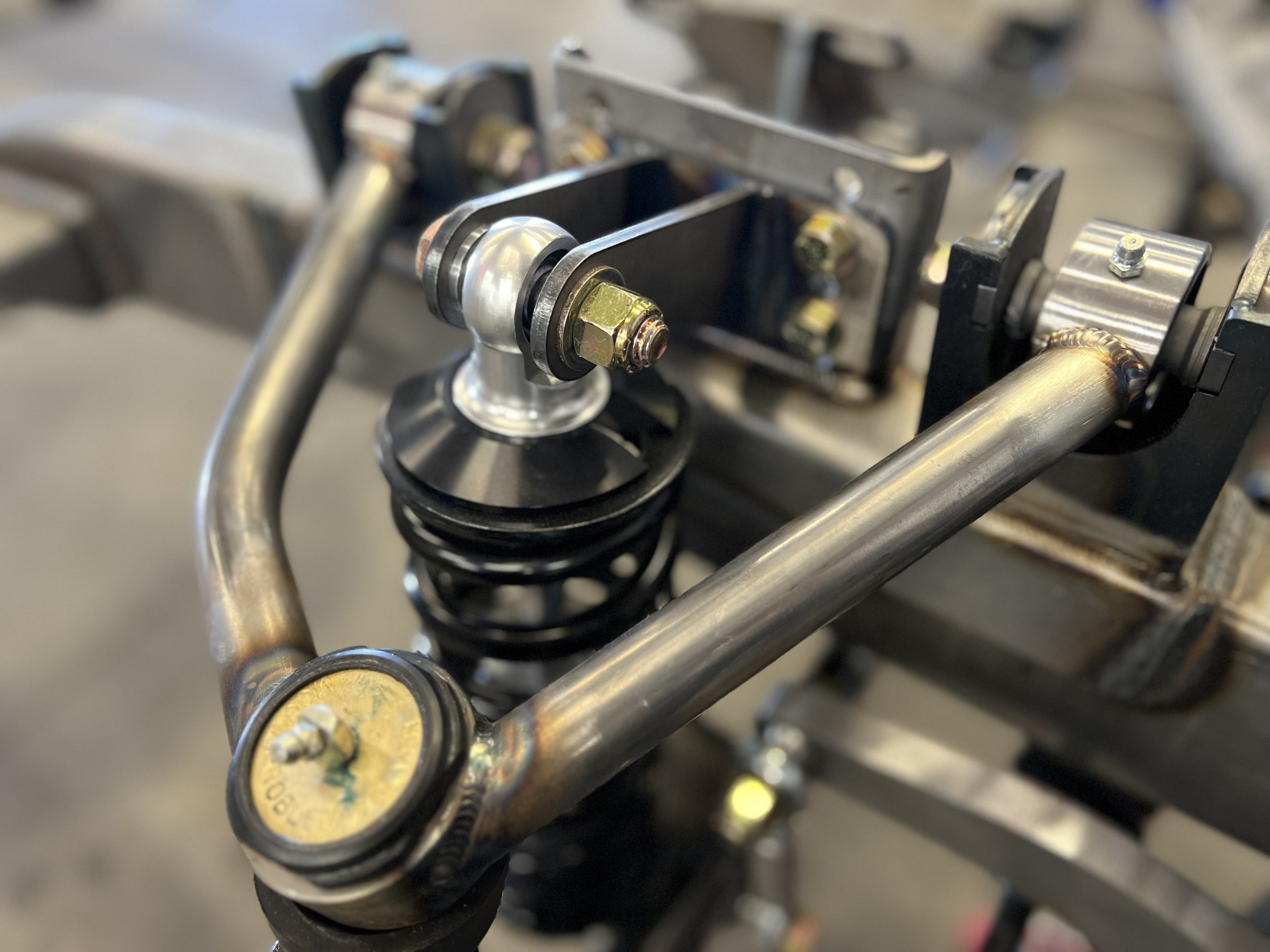

  • Grahams exclusive independent front design utilizing eccentric control arm alignment and adjustable upper coil over shock mount

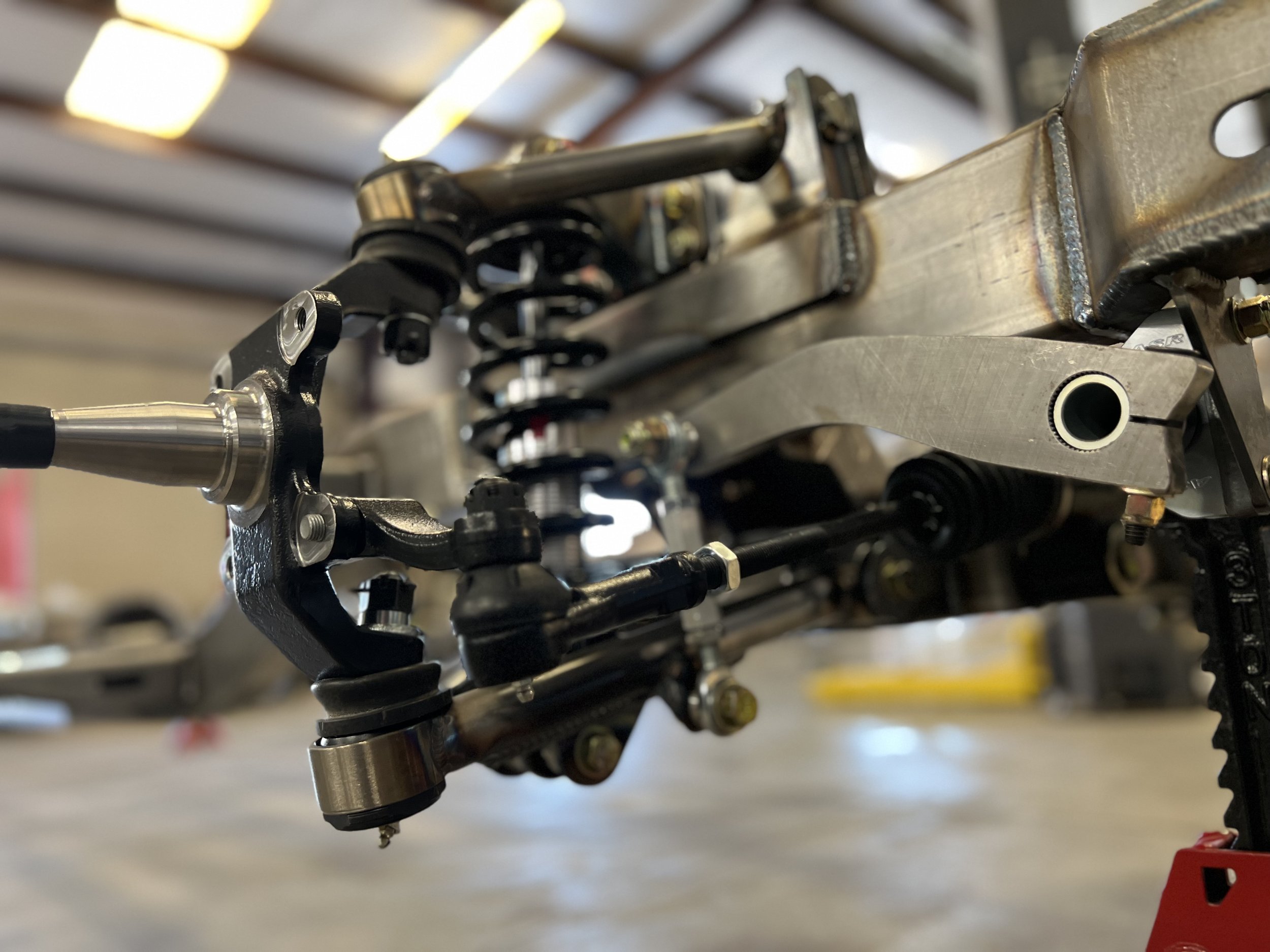

  • Tubular front A-arm construction
  • Slotted motor mounts to allow 1” of fore-aft engine placement.
  • Formed rear crossmember includes mounts for fuel tank and provisions for exhaust routing and mounting

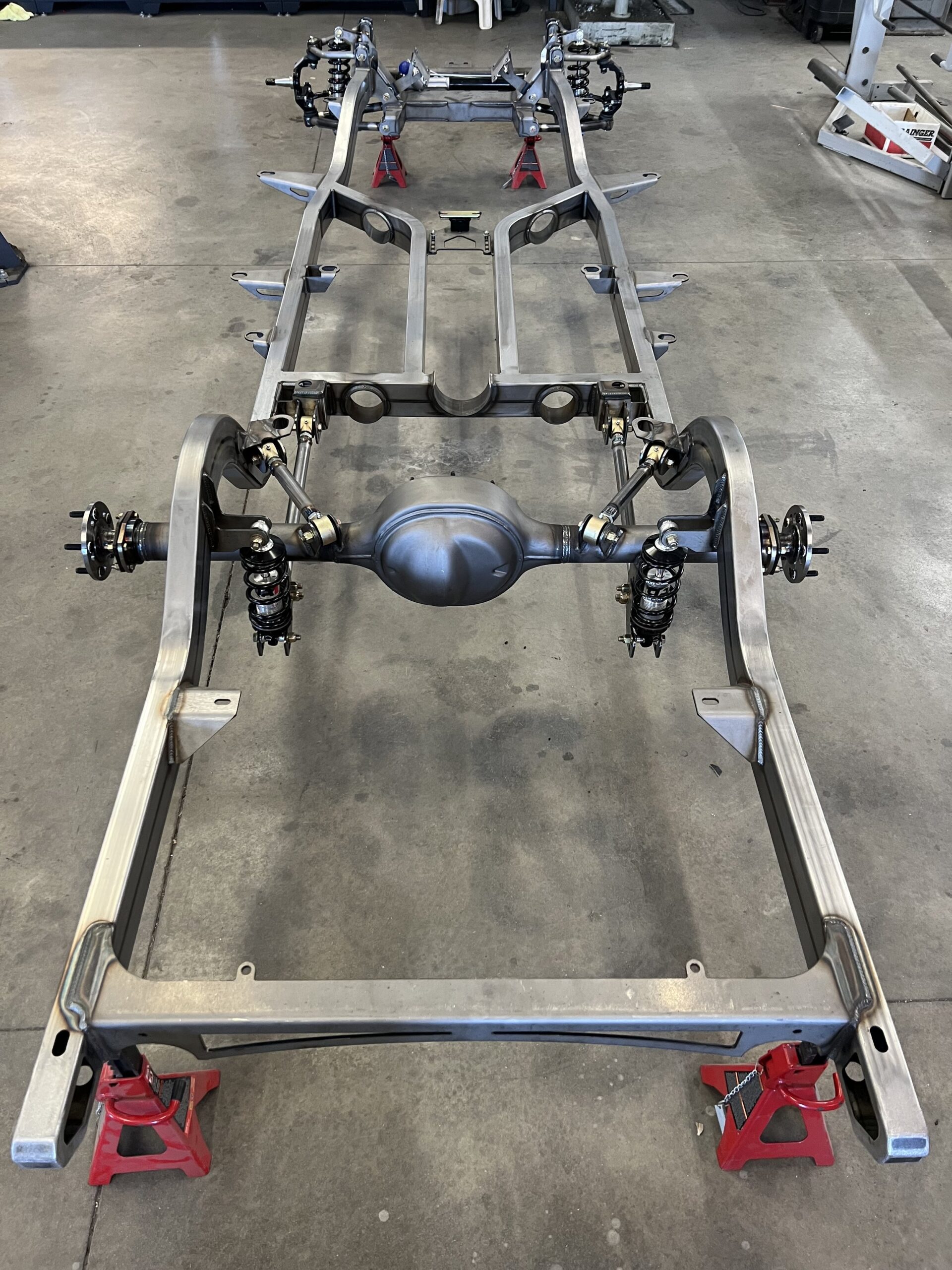

  • Adjustable triangulated 4-link rear suspension using Johnny joint rod ends

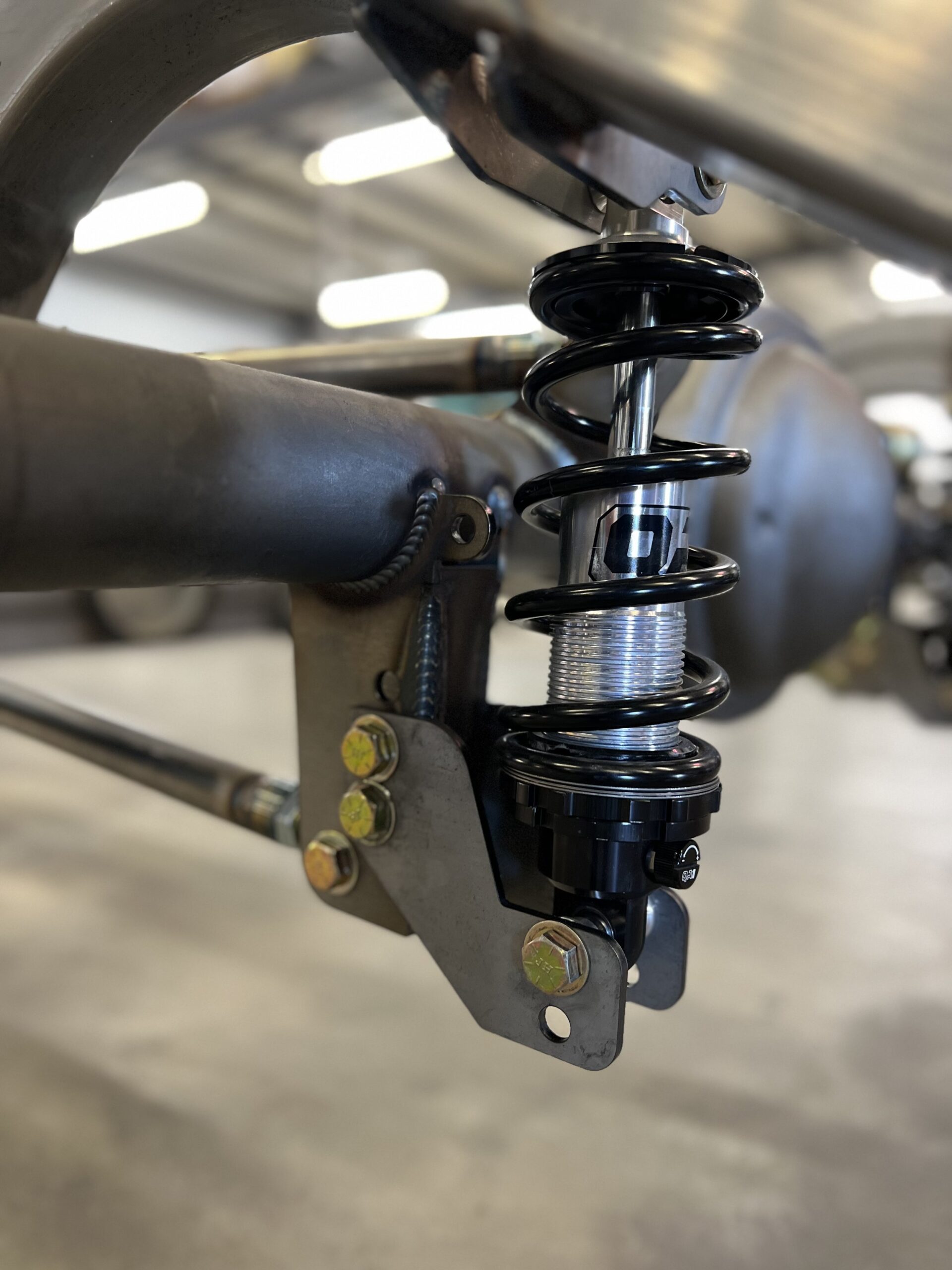

  • Rear adjustable coil-over mounting system
  • 9” ford housing w/alloy 31 spline axles available in stock, 52” and 48” housing widths (custom widths available also)
  • QA1 shocks and springs are standard

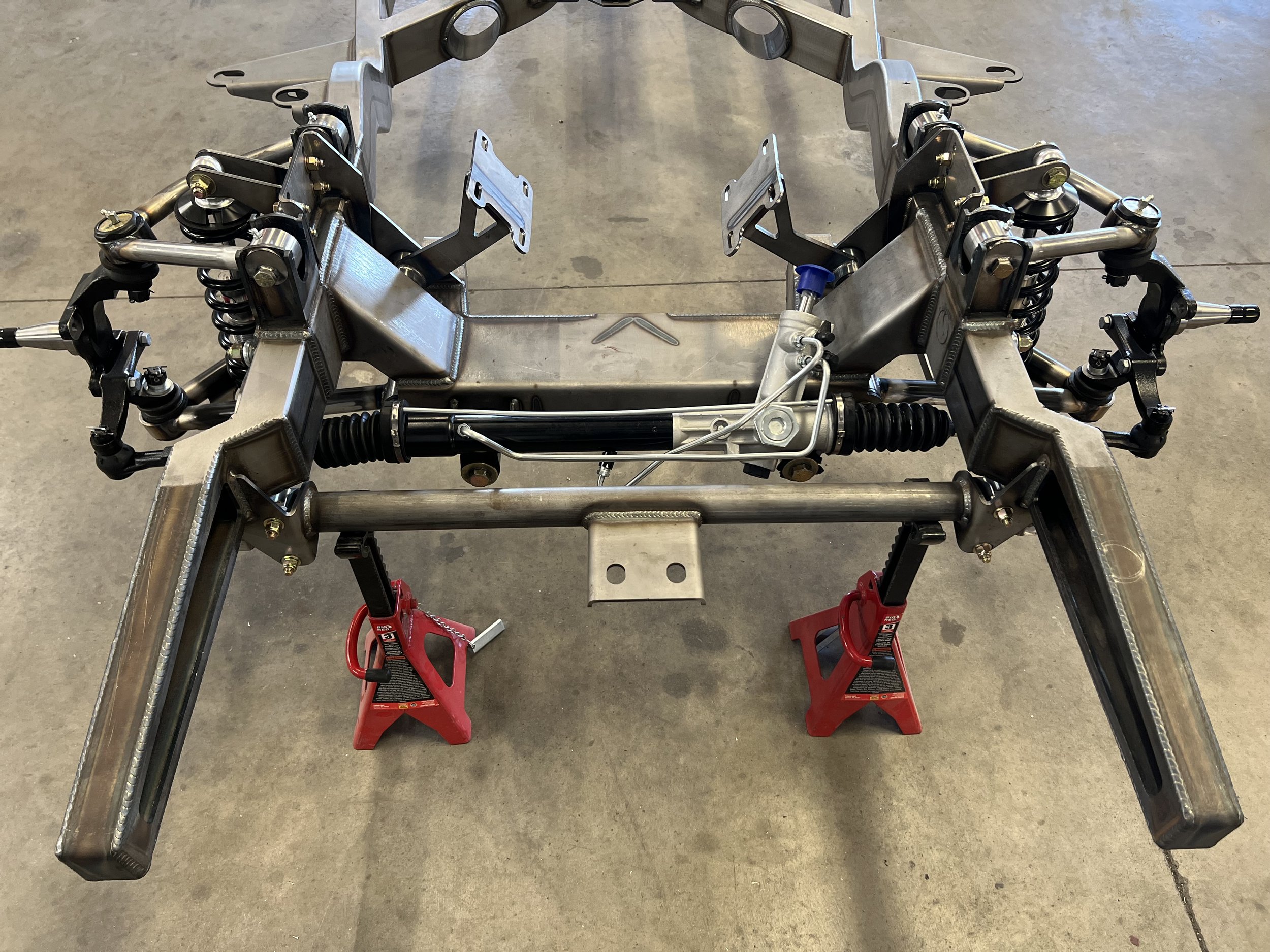

  • Power rack & pinion standard (manual version options available)
  • LS/LT, big or small block motor mounts (requires Holley LS/LT Swap Oil pan, does clear LT5 factory dry sump pans)
  • Stainless fuel line and brake line (option available for additional cost, $1,500)
  • Bare or semi-gloss black powder coat finish (option available for additional cost,($1,600)Starting: $14,995.00

Reviews

There are no reviews yet.

Be the first to review “TRI-5 CUSTOM CHASSIS”

Your email address will not be published. Required fields are marked *

1. DSE Steering Upgrade
Yes No
2. QA1 Tie Rod Ends
Yes (+$250.00) No
3. Brake Lines *
Yes (+$1,000.00) No
4. Fuel Lines *
Yes (+$500.00) No
5. Rear Sway Bar (C10 Only)
Yes (+$700.00) No
6. Powder Coating
Yes (+$1,600.00) No
7. Wilwood Hubs *
Yes (+$500.00) No
8. Shockwave Upgrade
Yes (+$1,000.00) No
9. Motor Mounts
LS LT SBC/BBC
Brake Options
14″ (+$4,750.00) 12.8″ (+$3,770.00) 12.19″ (+$2,270.00) 11″ (+$1,960.00) None
3rd Member
None Nodular Iron Aluminum Ratio (specify) Tru Track 31 Spline 35 Spline
Shipping And/or Crating
Shipped / Crated Pick-Up Assembled – Yes Assembled – No
