C1 corvette CHASSIS

$14,995.00

C1 corvette CHASSIS   Standard Chassis Features 2×4 0.120 wall mandrel bent rectangle tube construction GHRS exclusive Splined Front Sway Bar Center frame construction w/adjustable transmission crossmember to accommodate a wide variety of most GM transmission and 4” exhaust ports Grahams exclusive independent front design utilizing eccentric control arm alignment and adjustable upper coil over […]

Select Yes if you would like to add DSE Rack and Pinion Steering.
Select Yes if you would like to add QA1 Tie Rod Ends
Select Yes if you would like brake lines.
Select Yes if you would like to add Fuel Lines
Select Yes if you would like to add Rear Sway Bar.
Select Yes if you would like to add Powder Coating.
Select Yes if you would like to add Wilwood Hubs.
Select Yes if you would like to add Shockwave Upgrade.
Select the option type if you would like to add Motor Mounts.
Select the correct size if you would like to add Brake Options.
Starting at $1500, select all that apply from the list of attributes below.
Product total
Options total
Grand total
Category:

Description

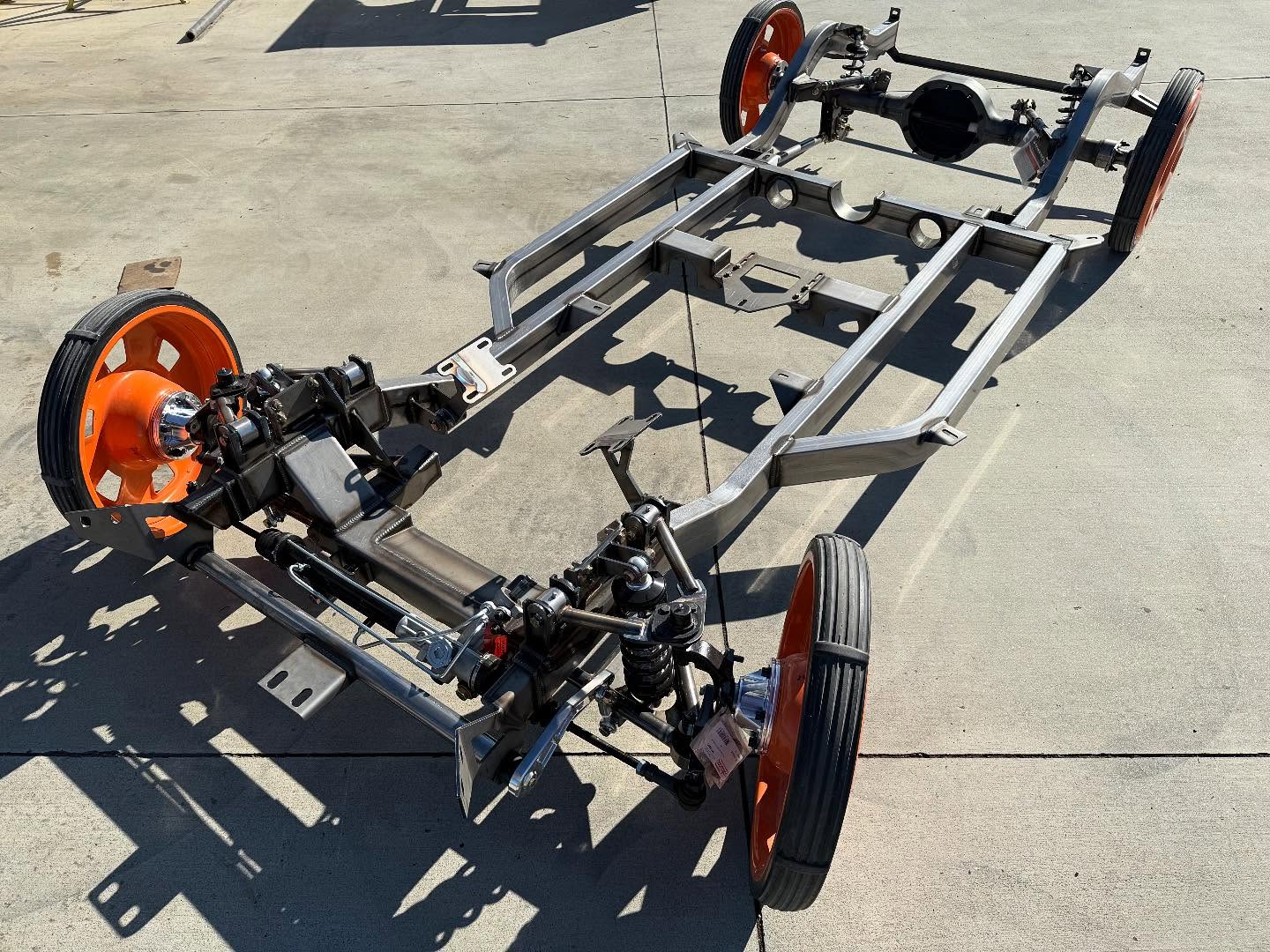

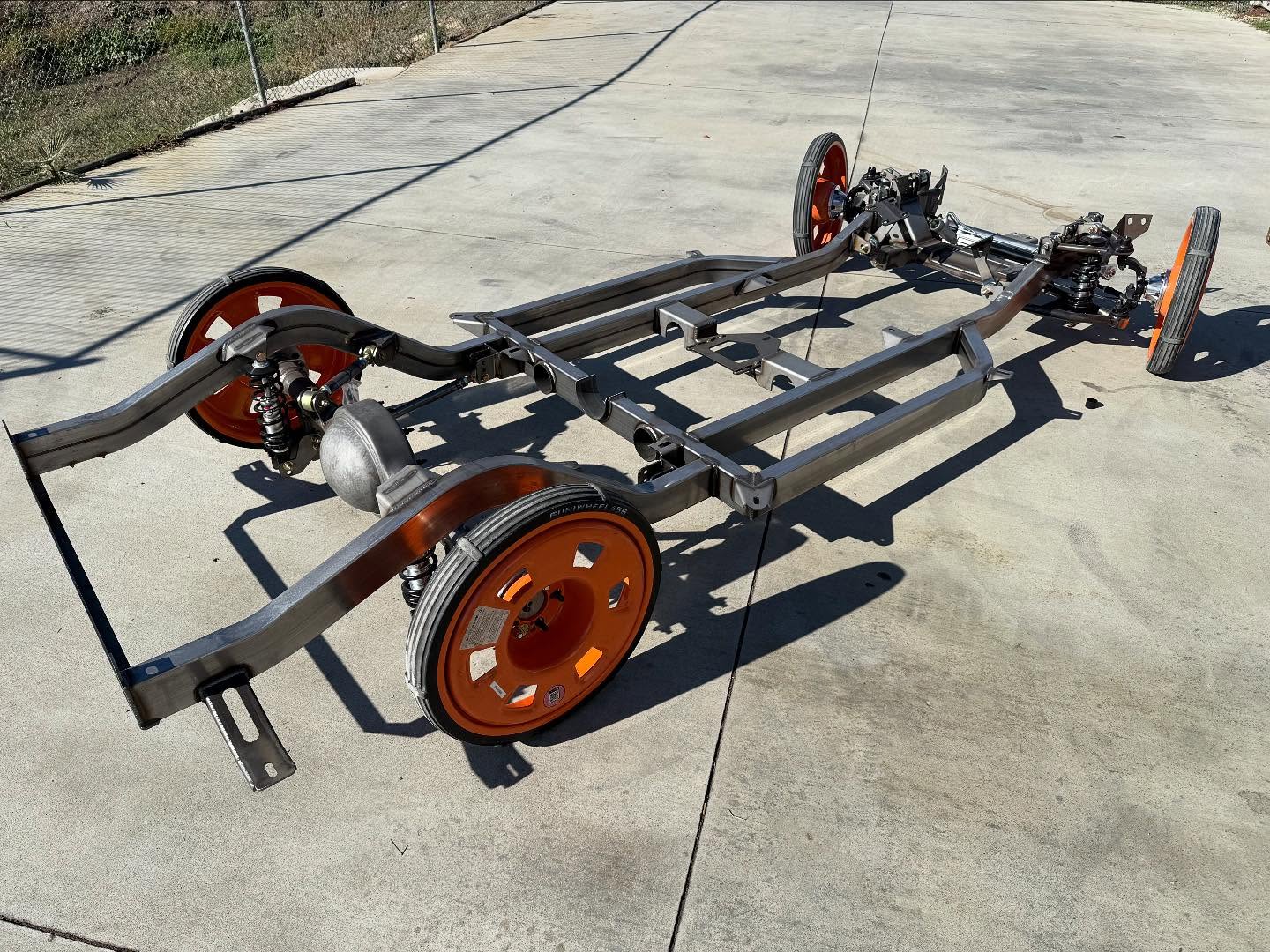

C1 corvette CHASSIS



Standard Chassis Features

  • 2×4 0.120 wall mandrel bent rectangle tube construction
  • GHRS exclusive Splined Front Sway Bar
  • Center frame construction w/adjustable transmission crossmember to
    accommodate a wide variety of most GM transmission and 4” exhaust ports

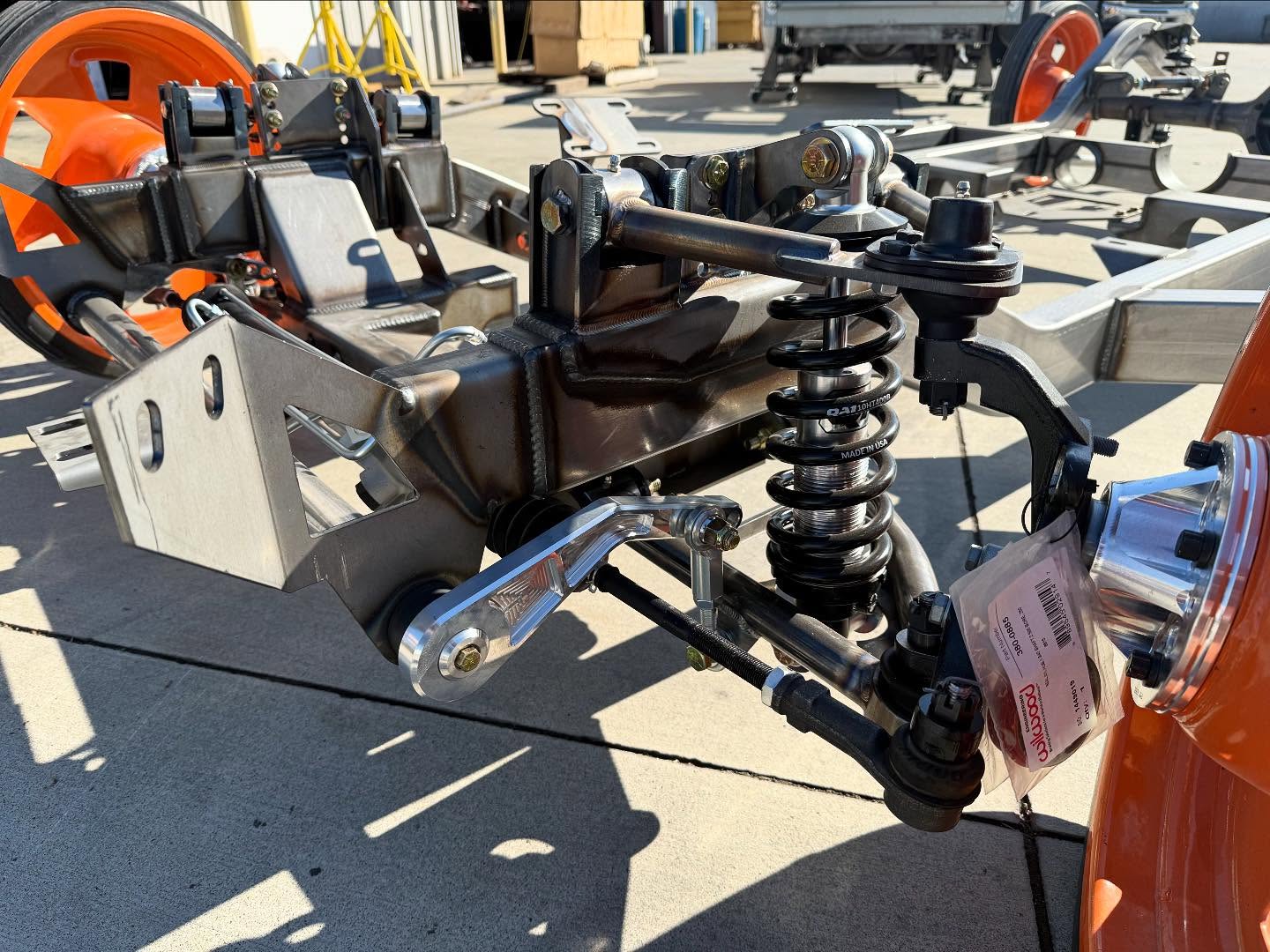

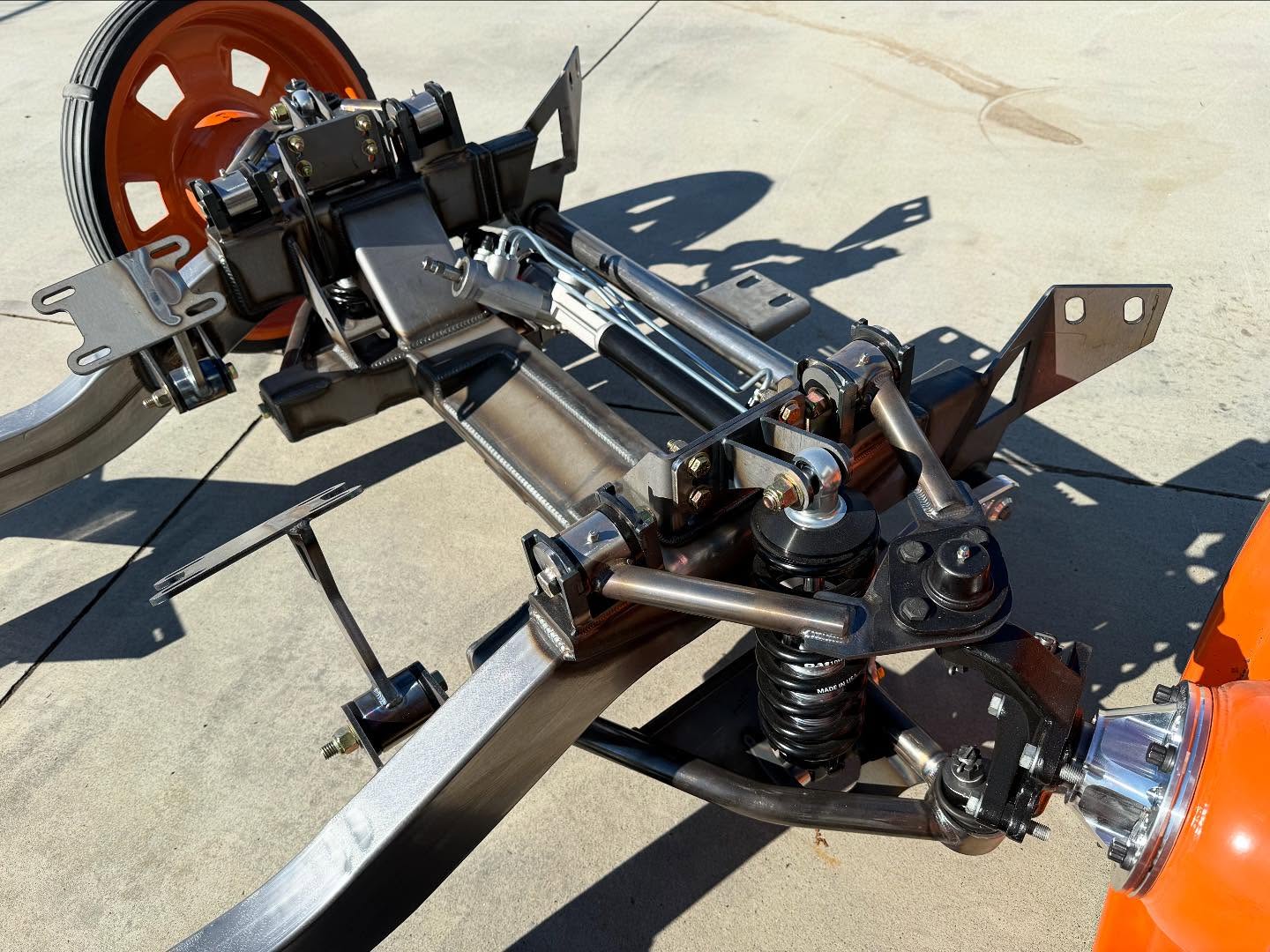

  • Grahams exclusive independent front design utilizing eccentric control arm
    alignment and adjustable upper coil over shock mount
  • Tubular front A-arm construction

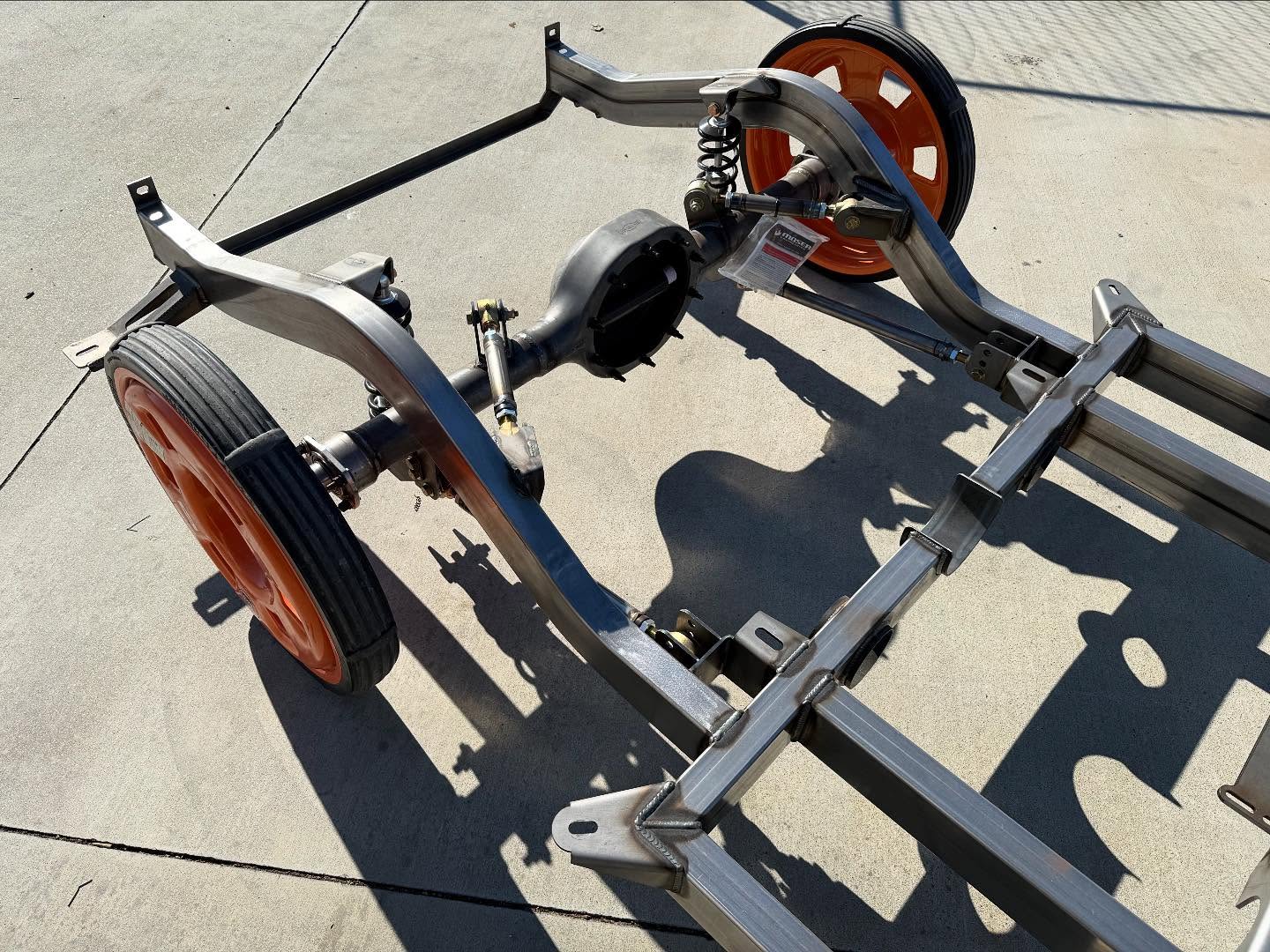

  • Triangulated 4-link rear suspension w/ johnny joint rod ends
  • 9” Axle housing and 31 spline axles
  • Slotted motor mounts to allow 1” of fore-aft engine placement.
  • Formed crossmembers and body mounts
  • QA1 shocks and springs are standard
    Power rack & pinion standard (manual version options available)
  • LS/LT, big or small block motor mounts (requires Holley LS/LT Swap Oil pan, does
    clear LT5 factory dry sump pans)

Estimate Starting: $14,995.00

Reviews

There are no reviews yet.

Be the first to review “C1 corvette CHASSIS”

Your email address will not be published. Required fields are marked *

1. DSE Steering Upgrade
Yes No
2. QA1 Tie Rod Ends
Yes (+$250.00) No
3. Brake Lines *
Yes (+$1,000.00) No
4. Fuel Lines *
Yes (+$500.00) No
5. Rear Sway Bar (C10 Only)
Yes (+$700.00) No
6. Powder Coating
Yes (+$1,600.00) No
7. Wilwood Hubs *
Yes (+$500.00) No
8. Shockwave Upgrade
Yes (+$1,000.00) No
9. Motor Mounts
LS LT SBC/BBC
Brake Options
14″ (+$4,750.00) 12.8″ (+$3,770.00) 12.19″ (+$2,270.00) 11″ (+$1,960.00) None
3rd Member
None Nodular Iron Aluminum Ratio (specify) Tru Track 31 Spline 35 Spline
Shipping And/or Crating
Shipped / Crated Pick-Up Assembled – Yes Assembled – No
